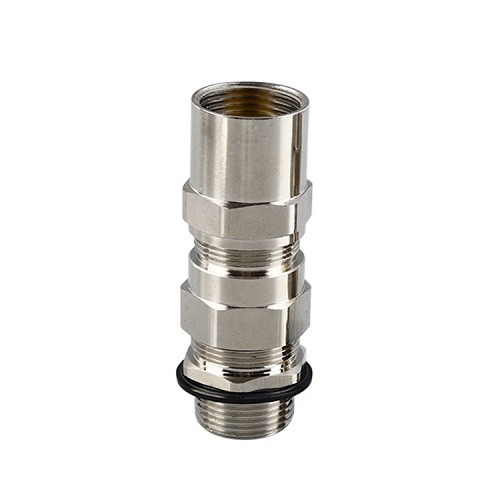

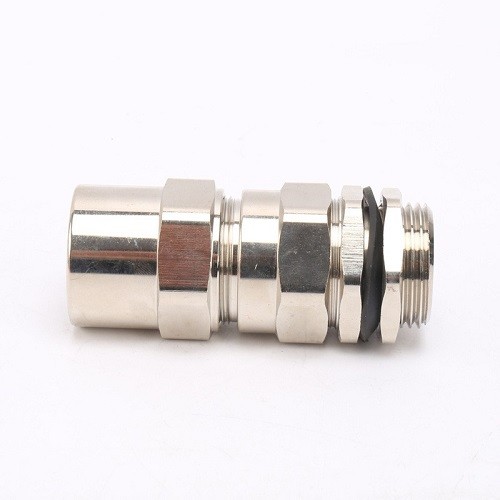

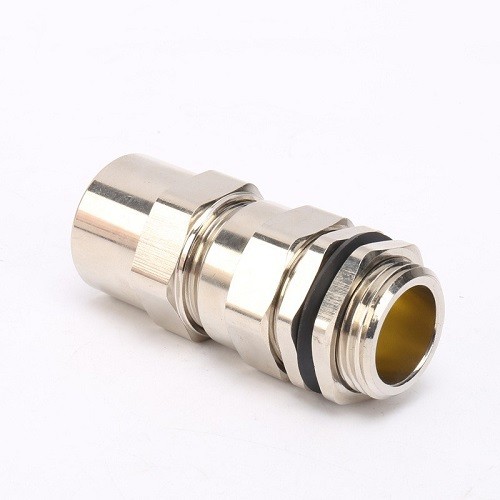

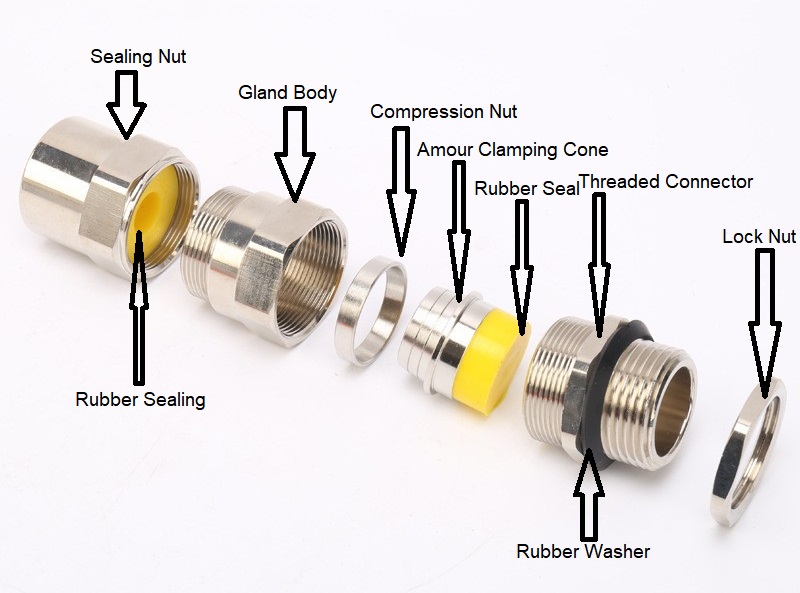

Explosion-Proof Double Compression cable gland for armoured cable
With a female threaded outlet fitting
Explosion-proof Double compression cable glands designed for armored cables, they are suitable for hazardous environments such as petroleum extraction, oil refining, chemical industry, and military applications.
Applicable Environments:
- Explosive gas atmospheres in Zone 1 and Zone 2 locations;
- Combustible dust atmospheres in Zone 20, Zone 21, and Zone 22 locations;
- Explosive gas environments classified as Group IIA, IIB, and IIC;
- Compatible with armored cables and cable conduit systems;
- Designed for clamping and sealing cables with steel wire armor, braided armor, or steel tape armor.
- Intended for use with non-armored cables and cable wiring system.
- Implementation standards: GB3836.1, GB3836.2, GB3836.3, GB12476.1, GB12476.5, IEC60079-0, IEC60079-1, IEC60079-7 ,IEC61241-0, IEC61241-1, EN60079-0, EN60079-1, EN60079-7, EN61241-0, EN61241-1
Material : Nickel plated brass, brass, stainless steel SS304, SS316
Seal Material : Neoprene Rubber/Silicone
Temperature range: -60℃~+100℃
Ingress Protection :IP 68
Anti-hazard Classification:Ex db llC Gb; Ex eb llC Gb;Ex tb IIIC Db
Thread: Metric thread, NPT thread, G thread
| Item No. | M Thread | NPT Thread | G Thread | Cable Range(mm) | Thread Length | Spanner Size | |
| Max Outlet ΦA | Inlet ΦB | L1 (mm) | L(mm) | ||||
| DAGN-A1 | M16x1.5 | NPT3/8 | G3/8 | 10 | 5-16 | 15 | 24 |
| DAGN-A2 | M20x1.5 | NPT1/2 | G1/2 | 10 | 5-16 | 15 | 24 |
| DAGN-A2D | M20x1.5 | NPT1/2 | G1/2 | 15 | 5-20 | 15 | 30 |
| DAGN-A3 | M25x1.5 | NPT3/4 | G3/4 | 15 | 5-20 | 15 | 30 |
| DAGN-A3D | M25x1.5 | NPT3/4 | G3/4 | 20 | 8-26 | 15 | 38 |
| DAGN-A4 | M32x1.5 | NPT1 | G1 | 20 | 8-26 | 17 | 38 |
| DAGN-A4D | M32x1.5 | NPT1 | G1 | 26 | 15-33 | 17 | 45 |
| DAGN-A5 | M40x1.5 | NPT1 1/4 | G1 1/4 | 26 | 15-33 | 17 | 45 |
| DAGN-A5D | M40x1.5 | NPT1 1/4 | G1 1/4 | 33 | 16-40 | 17 | 55 |
| DAGN-A6 | M50x1.5 | NPT1 1/2 | G1 1/2 | 33 | 16-40 | 20 | 55 |
| DAGN-A6D | M50x1.5 | NPT1 1/2 | G1 1/2 | 41 | 18-50 | 20 | 68 |
| DAGN-A7 | M63x1.5 | NPT2 | G2 | 41 | 18-50 | 20 | 68 |
| DAGN-A7D | M63x1.5 | NPT2 | G2 | 53 | 25-64 | 20 | 82 |
| DAGN-A8 | M75x2 | NPT2 1/2 | G2 1/2 | 53 | 25-64 | 22 | 82 |
| DAGN-A9 | M88x2 | NPT3 | G3 | 75 | 31-80 | 22 | 98 |
| DAGN-A10 | M100x2 | / | / | 83 | 40-96 | 22 | 110 |
| DAGN-A11 | M115x2 | NPT4 | G4 | 90 | 40-103 | 22 | 125 |
| DAGN-A12 | M130x2 | / | / | 100 | 98-119 | 22 | 140 |
We offer customization services with a low minimum order quantity to meet diverse client needs.
