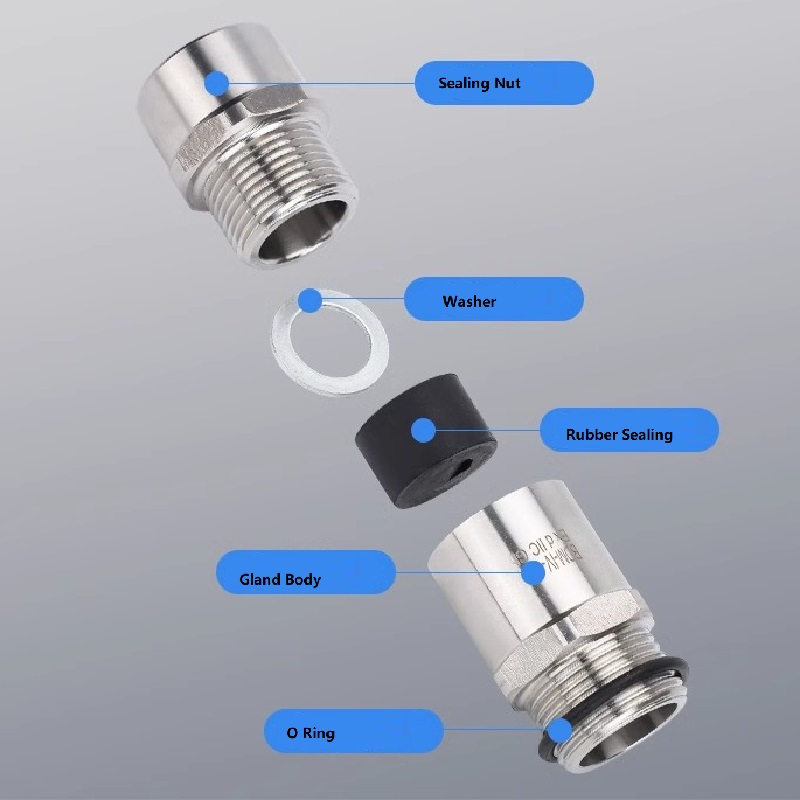

Description
Single compression cable glands with a female threaded outlet fitting, they are suitable for all types of non-armoured cables. They are IP68 waterproof and explosion proof, can be used in hazardous environments including petroleum extraction, oil refining, chemical processing, and military industries.
Material : Nickel plated brass, brass, stainless steel SS304, SS316
Seal Material : Neoprene Rubber/Silicone
Temperature range: -60℃~+100℃
Ingress Protection :IP 68
Anti-hazard Classification:Ex db llC Gb; Ex eb llC Gb;Ex tb IIIC Db
Thread: Metric thread, NPT thread, G thread
Application Scope:
- Suitable for hazardous environments including petroleum extraction, oil refining, chemical processing, and military industries.
- Compatible with Explosive Gas Atmospheres: Zone 1, Zone 2.
- Compatible with Combustible Dust Atmospheres: Zone 20, Zone 21, Zone 22.
- Designed for Explosive Gas Environments classified as IIA, IIB, or IIC.
- Intended for use with non-armored cables and cable wiring system.
- Implementation standards: GB3836.1, GB3836.2, GB3836.3, GB12476.1, GB12476.5, IEC60079-0, IEC60079-1, IEC60079-7 ,IEC61241-0, IEC61241-1, EN60079-0, EN60079-1, EN60079-7, EN61241-0, EN61241-1

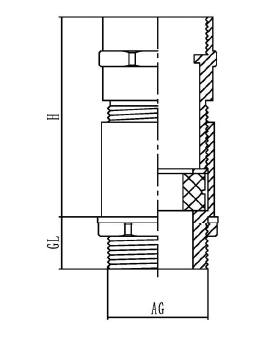

| Item No. | M Thread | NPT Thread | G Thread | Cable Range | Thread Length | Spanner Size |
| Φ(mm) | GL (mm) | (mm) | ||||
| SCGN-AS | M16X1.5 | NPT3/8 | G3/8 | 8-14 | 15 | 24 |
| SCGN-A1 | M20x1.5 | NPT1/2 | G1/2 | 8-14 | 15 | 24 |
| SCGN-A2 | M25x1.5 | NPT3/4 | G3/4 | 8-17 | 15 | 30 |
| SCGN-A3 | M32x1.5 | NPT1 | G1 | 12-24 | 17 | 38 |
| SCGN-A4 | M40x1.5 | NPT1 1/4 | G1 1/4 | 18-30 | 17 | 45 |
| SCGN-A5 | M50x1.5 | NPT1 1/2 | G1 1/2 | 24-36 | 20 | 55 |
| SCGN-A6 | M63x1.5 | NPT2 | G2 | 30-46 | 20 | 68 |
| SCGN-A7 | M75x2.0 | NPT2 1/2 | G2 1/2 | 36-60 | 22 | 80 |
| SCGN-A8 | M88x2.0 | NPT3 | G3 | 58-72 | 22 | 96 |
| SCGN-A9 | M110x2.0 | NPT4 | G4 | 66-90 | 22 | 125 |
