Description

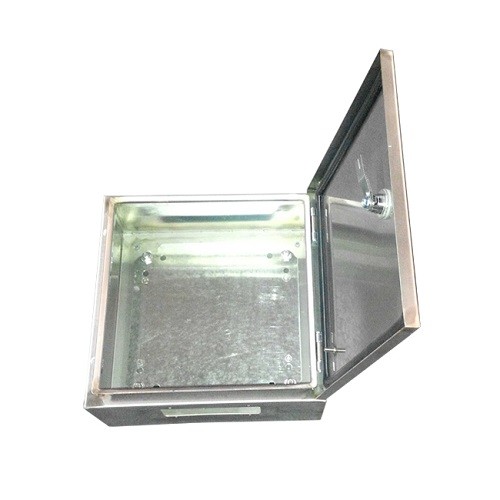

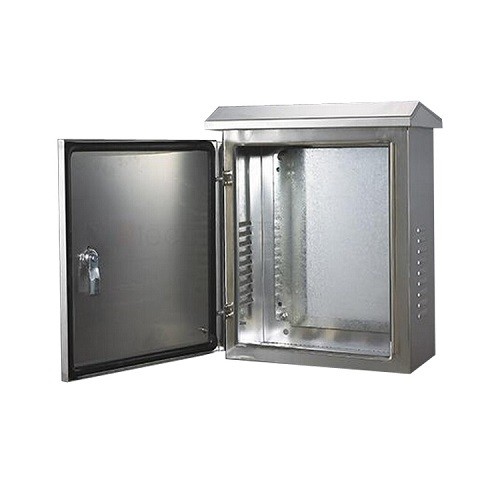

IP65 Waterproof Stainless steel enclosure
Stainless steel enclosures are more corrosion resistant than galvanized steel for use in environments with corrosive liquids. These are rated IP65 for protection from dirt, wash-downs, and corrosion.
· Material: Stainless steel SS304, SS316
· Door can be hinged left or right
· With a slotted latch open with a quarter turn
· IP65, dustproof and weatherproof
· Adjustable mounting plate
· Optional gland plate
Normal Standard Sizes Available:
|
Model No. |
Dimensions (in mm) |
||
|
H |
W |
D |
|
|
SFWS-2315 |
300 |
200 |
150 |
|
SFWS-2320 |
300 |
200 |
200 |
|
SFWS-3315 |
300 |
300 |
150 |
|
SFWS-3415 |
400 |
300 |
150 |
|
SFWS-3420 |
400 |
300 |
200 |
|
SFWS-4515 |
500 |
400 |
150 |
|
SFWS-4520 |
500 |
400 |
200 |
|
SFWS-4525 |
500 |
400 |
250 |
|
SFWS-4615 |
600 |
400 |
150 |
|
SFWS-4620 |
600 |
400 |
200 |
|
SFWS-4625 |
600 |
400 |
250 |
|
SFWS-5615 |
600 |
500 |
150 |
|
SFWS-5620 |
600 |
500 |
200 |
|
SFWS-5625 |
600 |
500 |
250 |
|
SFWS-5720 |
700 |
500 |
200 |
|
SFWS-5725 |
700 |
500 |
250 |
|
SFWS-6820 |
800 |
600 |
200 |
|
SFWS-6825 |
800 |
600 |
250 |
|
SFWS-6830 |
800 |
600 |
300 |
|
SFWS-61025 |
1000 |
600 |
250 |
|
SFWS-61030 |
1000 |
600 |
300 |
|
SFWS-81030 |
1000 |
800 |
300 |
|
SFWS-61225 |
1200 |
600 |
250 |
|
SFWS-61230 |
1200 |
600 |
300 |
|
SFWS-81230 |
1200 |
800 |
300 |
