Description

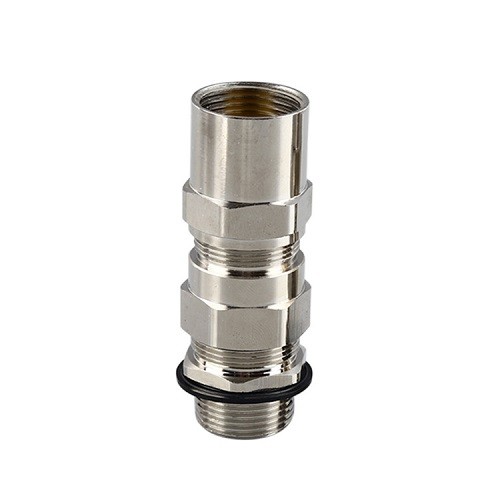

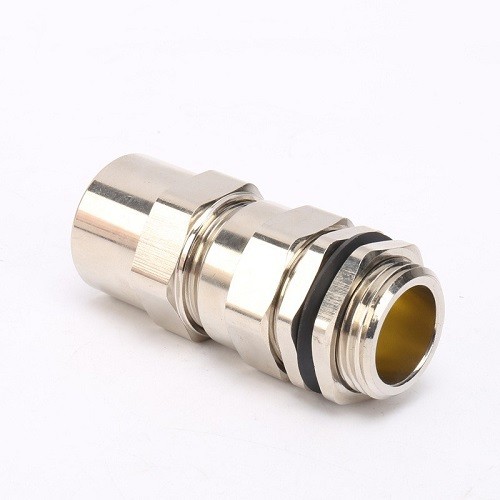

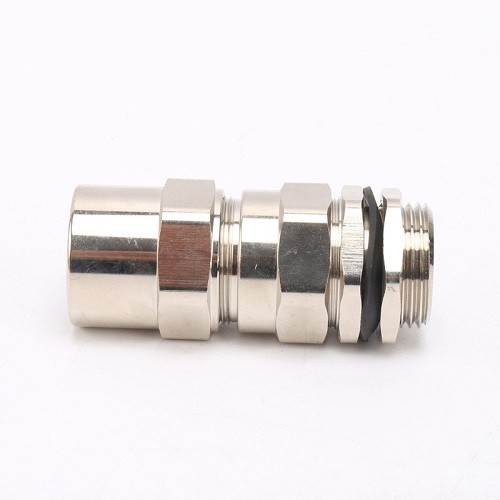

Double Compression cable gland for Armoured Cables
Double compression cable glands are suitable for all types of armoured cables. They are waterproof and explosion proof, they can be used in the corrosive condition when protected by shroud.

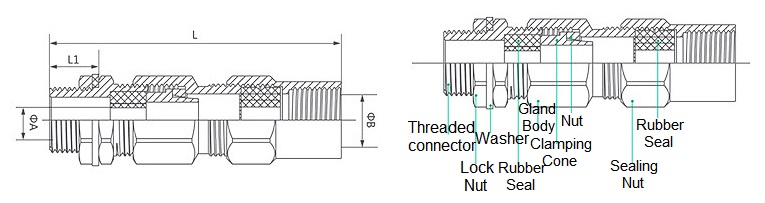

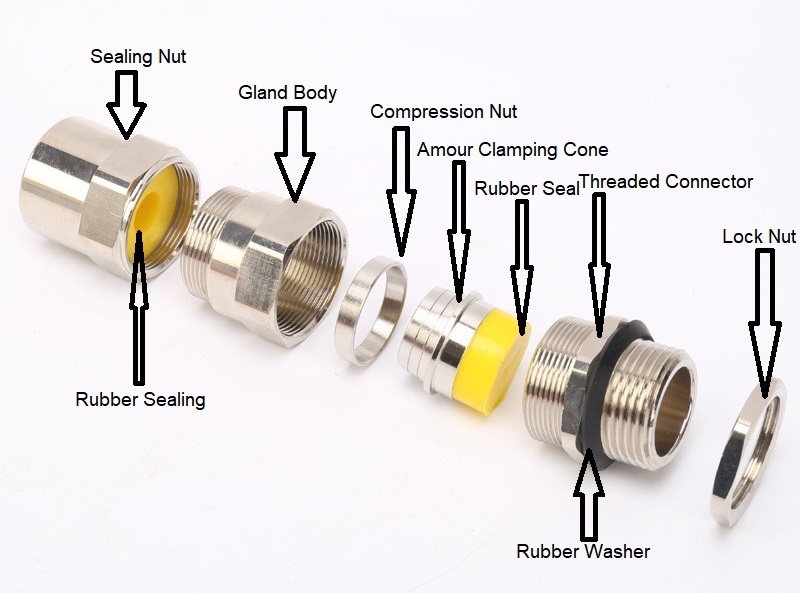

The Double compressor cable glands include a sealing nut, two rubber sealings, a gland body, a compression nut, an armoured clamping cone, a gland entry part, an O ring, and a lock nut.
Shrouds and Earth tags are supplied separately if needed.
Gland Material: Brass, Nickel Plated Brass, Stainless Steel 304, 316
Seal Material : Neoprene Rubber
Temperature range: -40℃~100℃
Ingress Protection :IP 66
Anti-hazard Classification: Exd ⅡC Gb
Thread: Metric thread, NPT thread, G thread
Accessories: Shrouds and Earth tags are supplied separately, please advise if you need them.

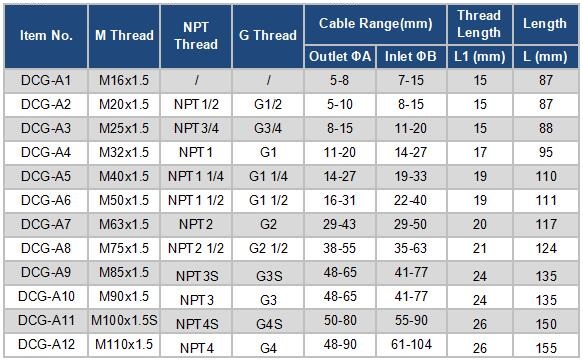

Double compression cable glands Size Chart
If you need any non-standard sizes, please feel free to contact us, we provide customized service.
