Description

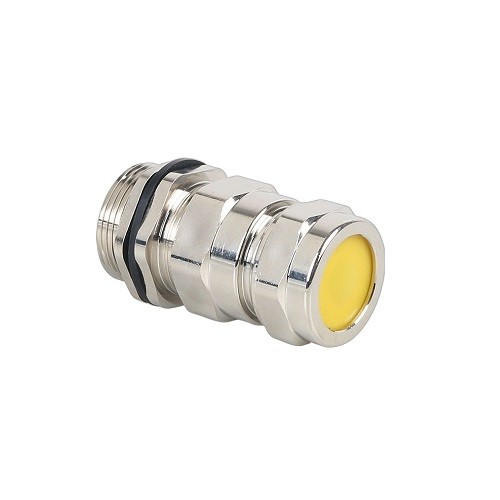

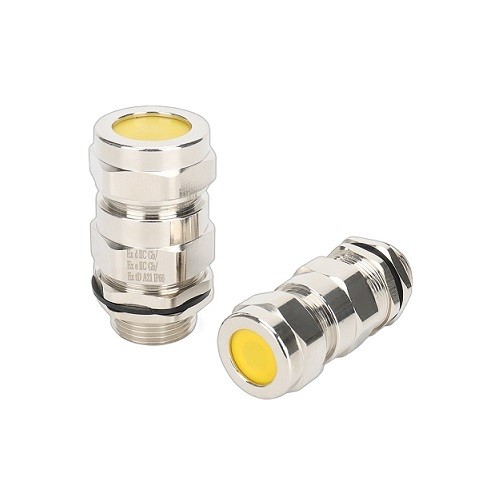

Double Compression cable gland for Armoured Cables

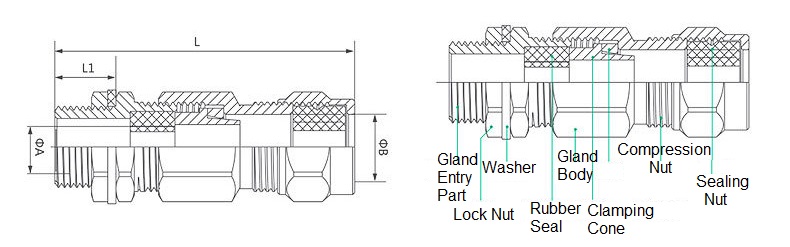

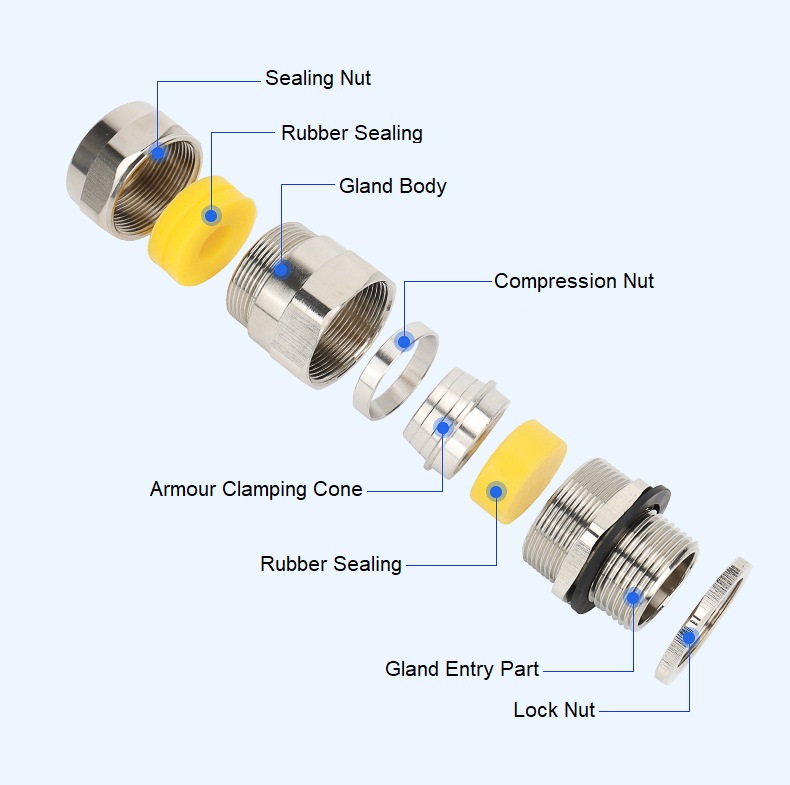

Double compression cable glands are waterproof and explosion proof, they are suitable for all types of armoured cables. The Double compressor cable glands include a sealing nut, two rubber sealings, a gland body, a compression nut, an armoured clamping cone, a gland entry part, an O ring, and a lock nut.
Material: Brass, stainless steel 304, 316
Finish: Nickel Plated
Seal Material: Neoprene Rubber
Temperature range: -40℃~100℃
Ingress Protection: IP66
Anti-hazard Classification: Exd ⅡC Gb/ Exe Ⅱ Gb/Ext IIIC Db
Thread: Metric thread, NPT thread, G thread

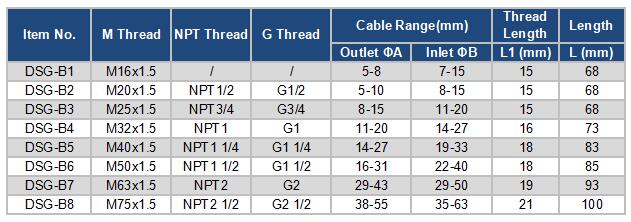

Double Compression Cable Glands Size Chart
If you need any non-standard sizes, please feel free to contact us, we provide customized service.
Our Advantages:
·More 15 years of cable glands manufacturing experience
·Full cable glands categories satisfy all your demands
·Favorable factory prices
·High production capacity, short lead time
·OME and ODM customized services
·Free samples available
Contact us to get products catalog and free samples!
