Description

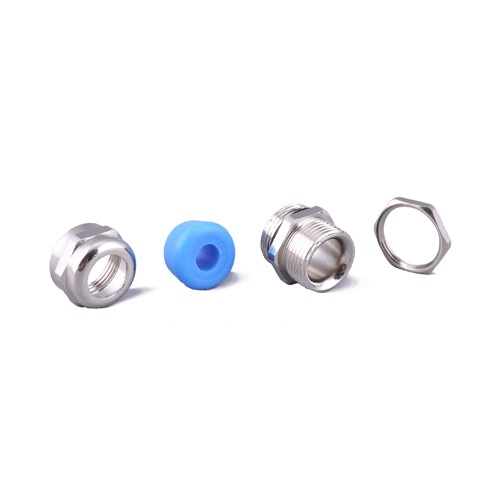

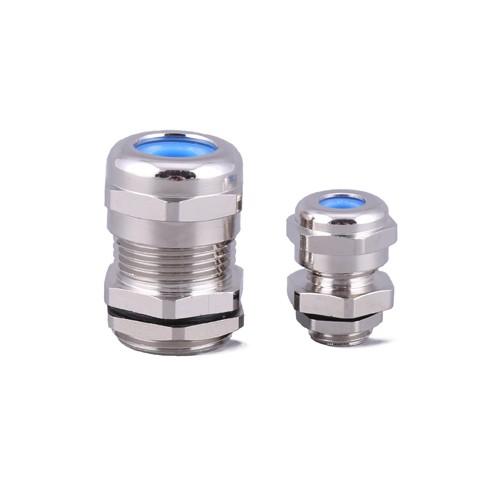

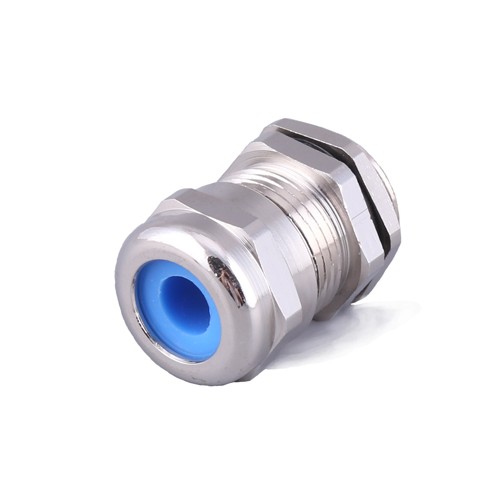

High-Temperature brass cable gland-With Double-Layer Silicon Seal
cable glands for chemical and high temperature applications are made of nickel plated brass, with single silicon seal, for industrial use.
Material: Nickel-plated brass, Stainless steel 304, 316, 316L
Seal: Silicone
Claw: PA66(UL94-V2)
O-ring: Silicone
Temperature range: -60℃~250℃
Protection class: IP68(up to 10bar)

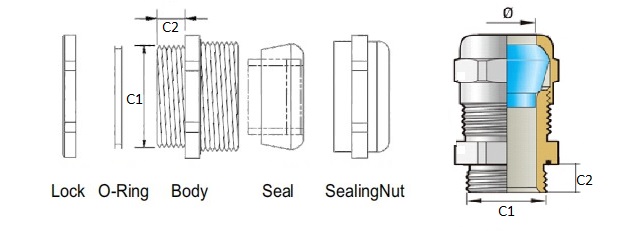

| Thread | Item No. | Cable RangeΦ | Outer Diameter C1 | Thread Length C2 | Spanner Size A&F |
| mm | mm | mm | mm | ||
| M12×1.5 | DHBCM12-8 | 2-8 | 12 | 7 | 18/18 |
| M16×1.5 | DHBCM16-11 | 4-11 | 16 | 7 | 20/20 |
| M18x1.5 | DHBCM18-11 | 4-11 | 18 | 7 | 22/22 |
| M20×1.5 | DHBCM20-14 | 5-14 | 20 | 8 | 24/24 |
| M22x1.5 | DHBCM22-14 | 5-14 | 22 | 8 | 26/26 |
| M24x1.5 | DHBCM24-20 | 11-20 | 25 | 9 | 30/30 |
| M25x1.5 | DHBCM25-20 | 11-20 | 25 | 9 | 30/30 |
| M27×1.5 | DHBCM27-20 | 11-20 | 27 | 9 | 30/30 |
| M30×1.5 | DHBCM30-25 | 15-25 | 32 | 11 | 36/36 |
| M32×1.5 | DHBCM32-25 | 15-25 | 32 | 11 | 36/36 |
| M33×1.5 | DHBCM33-25 | 15-25 | 36 | 11 | 36/36 |
| M36×2 | DHBCM36-25 | 15-25 | 36 | 11 | 40/40 |
| M40×1.5 | DHBCM40-32 | 20-32 | 40 | 11 | 44/44 |
| DHBCM40-42 | 31-42 | 40 | 11 | 58/58 | |
| M50×1.5 | DHBCM50-42 | 31-42 | 50 | 11 | 58/58 |
| M63×1.5 | DHBCM63-54 | 41-54 | 63 | 14 | 68/68 |
| Thread | Item No. | Cable RangeΦ | Outer Diameter C1 | Thread Length C2 | Spanner Size A&F |
| mm | mm | mm | mm | ||
| PG7 | DHBCPG7-8 | 2-8 | 12.5 | 7 | 18/18 |
| PG9 | DHBCPG9-11 | 4-11 | 15.2 | 7 | 20/20 |
| PG11 | DHBCPG11-11 | 4-11 | 18.6 | 7 | 22/22 |
| PG13.5 | DHBCPG13.5-14 | 5-14 | 20.4 | 8 | 24/24 |
| PG16 | DHBCPG16-14 | 5-14 | 22.5 | 8 | 26/26 |
| PG21 | DHBCPG21-20 | 11-20 | 28.3 | 9 | 30/30 |
| PG29 | DHBCPG29-32 | 20-32 | 37 | 10 | 44/44 |
| PG36 | DHBCPG36-42 | 31-42 | 47 | 11 | 58/58 |
| PG42 | DHBCPG42-42 | 31-42 | 54 | 13 | 58/58 |
| PG48 | DHBCPG48-54 | 41-54 | 59.3 | 14 | 68/68 |
| Thread | Item No. | Cable RangeΦ | Outer Diameter C1 | Thread Length C2 | Spanner Size A&F |
| mm | mm | mm | mm | ||
| G(PF)1/4" | DHBCPF1/4 -8 | 2-8 | 13.2 | 7 | 18/18 |
| G(PF)3/8" | DHBCPF3/8-11 | 4-11 | 16.7 | 8 | 22/22 |
| G(PF)1/2" | DHBCPF1/2-14 | 5-14 | 20.9 | 8 | 24/24 |
| G(PF)3/4" | DHBCPF3/4-20 | 11-20 | 26.4 | 9 | 30/30 |
| G(PF)1" | DHBCPF1-25 | 15-25 | 33.2 | 11 | 36/36 |
| G(PF)1 1/4" | DHBCPF1 1/4-32 | 20-32 | 41.9 | 11 | 44/44 |
| G(PF)1 1/2" | DHBCPF1 1/2-42 | 31-42 | 47.8 | 11 | 58/58 |
| G(PF)2" | DHBCPF 2-54 | 41-54 | 59.6 | 14 | 68/68 |
| Thread | Item No. | Cable RangeΦ | Outer Diameter C1 | Thread Length C2 | Spanner Size A&F |
| mm | mm | mm | mm | ||
| NPT1/4" | DHBCNPT1/4 -8 | 2-8 | 13.2 | 7 | 18/18 |
| NPT3/8" | DHBCNPT3/8-11 | 4-11 | 17.1 | 8 | 22/22 |
| NPT1/2" | DHBCNPT1/2-14 | 5-14 | 21.3 | 8 | 24/24 |
| NPT3/4" | DHBCNPT3/4-20 | 11-20 | 26.6 | 9 | 30/30 |
| NPT1" | DHBCNPT1-25 | 15-25 | 33.4 | 11 | 36/36 |
| NPT1 1/4" | DHBCNPT1 1/4-32 | 20-32 | 42.1 | 11 | 44/44 |
| NPT1 1/2" | DHBCNPT1 1/2-42 | 31-42 | 48.2 | 11 | 58/58 |
| NPT2" | DHBCNPT2-54 | 41-54 | 60.3 | 14 | 68/68 |
