Description

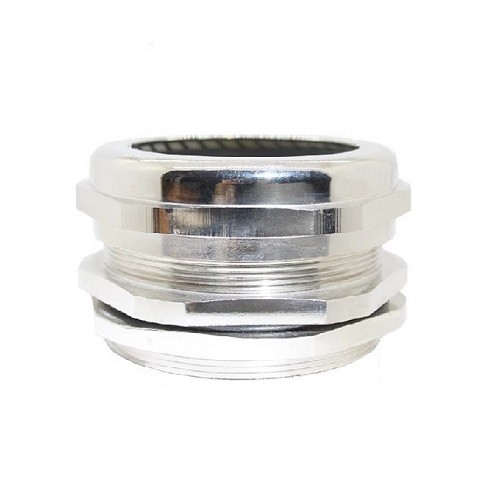

M100 brass cable gland
IP68 Waterproof brass cable gland is a kind of cable fittings, it is also known as brass cable connector, cable joint, or cord grip, it is waterproof designed, and can meet IP68 protection class. A brass cable gland consists of lock nut, washer (or O ring), gland body, claw, seal, and sealing nut. Its body, lock nut, sealing nut are made from nickel plated brass, the seal is made from NBR or EPDM or silicon material, the claw is made from nylon PA66, and the washer/O ring is made from NBR or silicon material.
The brass cable glands can be made with 4 kinds of threads, M (metric) thread, PG thread, NPT thread, and G(PF) thread.
·More than 15 years of cable glands manufacturing experience
·Full cable glands categories satisfy all your demands
·Favorable factory prices
·High production capacity, short lead time
·OME and ODM customized services
·Free samples available
Contact us to get products catalog and free samples!
IP68 Waterproof brass cable gland is a kind of cable fittings, it is also known as brass cable connector, cable joint, or cord grip, it is waterproof designed, and can meet IP68 protection class. A brass cable gland consists of lock nut, washer (or O ring), gland body, claw, seal, and sealing nut. Its body, lock nut, sealing nut are made from nickel plated brass, the seal is made from NBR or EPDM or silicon material, the claw is made from nylon PA66, and the washer/O ring is made from NBR or silicon material.
The brass cable glands can be made with 4 kinds of threads, M (metric) thread, PG thread, NPT thread, and G(PF) thread.
We can make customized specifications as per customers’ requirement, the material, thread type, thread length, and wire range can all be customized.
m100 brass cable glands are single compressor type, used for un-armoured cable in diameter from 78-84mm, the gland mounting hole is in diameter 100mm.
Sizes of m100 brass cable gland
|
Thread |
Cable Range |
Thread O.D |
Thread Length |
Spanner Size |
|
M100x2 |
78-84mm |
100 |
20 |
110/110 |
(If you need any non-standard sizes, please feel free to contact us, we provide customized service.)
