Description

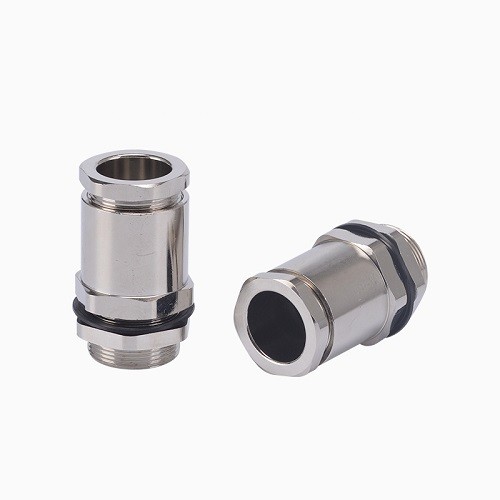

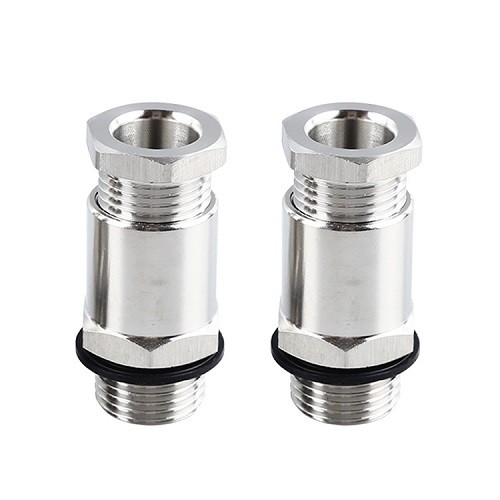

Single Compression cable gland for Un-Armoured Cables
Single compression cable glands are suitable for all types of un-armoured cables. They are waterproof and explosion proof, can be used in hazardous areas.

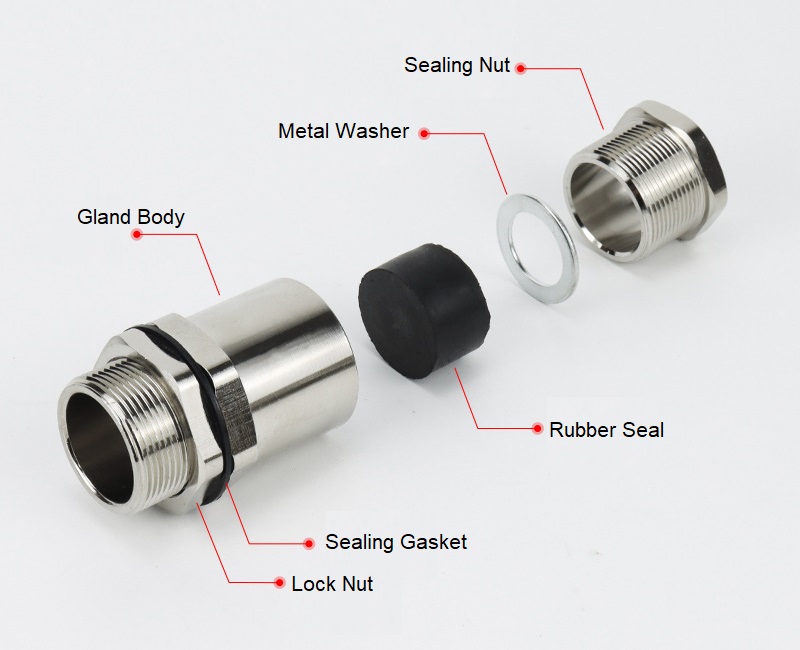

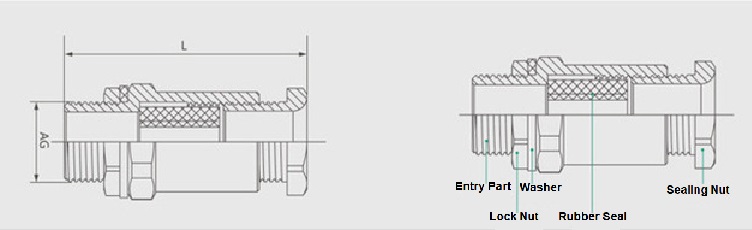

The single compressor cable glands include a sealing nut, a metal washer, a rubber seal, a gland body, a sealing gasket, and a lock nut.
Material : Nickel plated brass, brass, stainless steel 304, 316
Seal Material : Neoprene Rubber/Silicone
Temperature range: -40℃~100℃
Ingress Protection :IP 66
Anti-hazard Classification: Exd ⅡC Gb/ Exe Ⅱ Gb
Thread: Metric thread, NPT thread, G thread

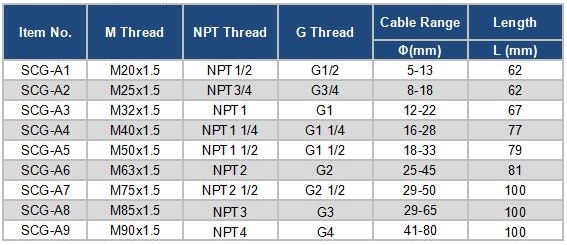

Sinlge Compression Cable Glands Size Chart
If you need any non-standard sizes, please feel free to contact us, we provide customized service.
Our Advantages:
·More than 15 years of cable glands manufacturing experience
·Full cable glands categories satisfy all your demands
·Favorable factory prices
·High production capacity, short lead time
·OME and ODM customized services
·Free samples available
Contact us to get products catalog and free samples!
