Description
IP65 Waterproof Stainless Steel Junction Box
Stainless steel junction boxes are waterproof designed, they are used to install electrical components, and protect the equipments from dust and liquid.

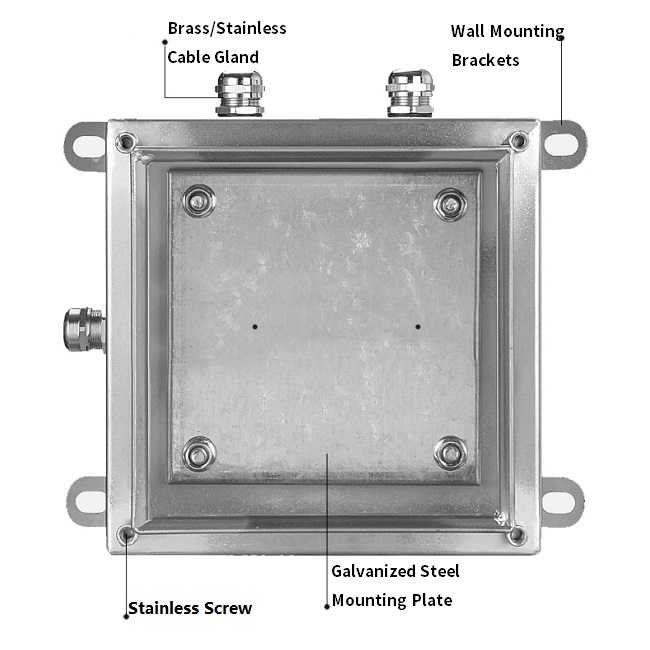

The waterproof stainless enclosures are made from stainless SS304 or SS316, with screwed-on cover, the cover is with polyurethane foam gasket, which has good dustproof and waterproof funtion.

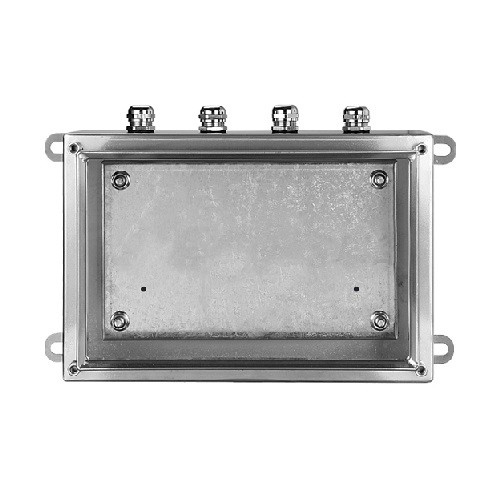

A galvanized steel mounting is supplied, so the user can drill hole on the mounting plate and install the components. 4 wall mounting brackets are supplied so user can easily mount the enclosure on the wall.
Cutouts and cable glands can be supplied as per customers' requirments.

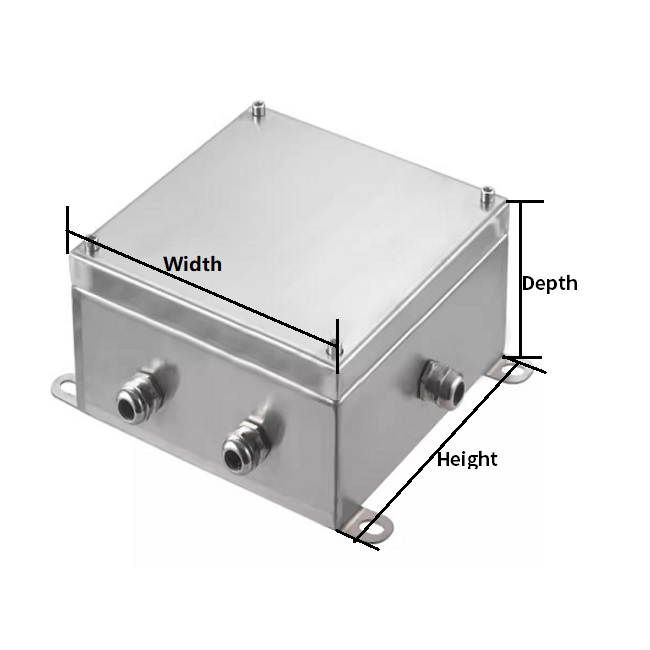

Stainless Steel Junction Boxes Size Chart:
| Model No. | Dimensions (mm) | Materaial | Thickness | |||
| Width | Height | Depth | Enclosure | Mtg Plate | mm | |
| SFJS-151510 | 150 | 150 | 100 | SS304/316 | Galvanized Steel | 1.2mm or Customized |
| SFJS-152010 | 200 | 150 | 100 | SS304/316 | Galvanized Steel | 1.2mm or Customized |
| SFJS-202010 | 200 | 200 | 100 | SS304/316 | Galvanized Steel | 1.2mm or Customized |
| SFJS-302010 | 300 | 200 | 100 | SS304/316 | Galvanized Steel | 1.2mm or Customized |
