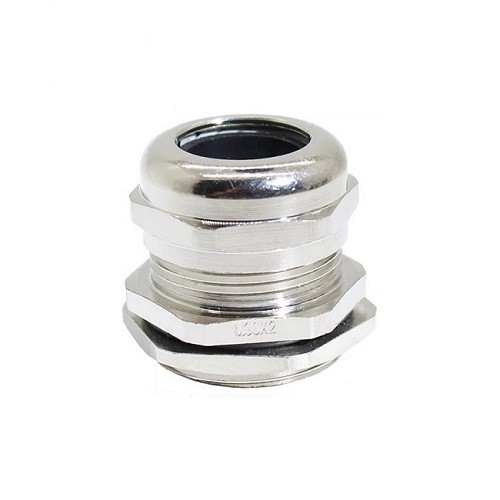

M32 brass cable gland
IP68 Waterproof brass cable gland is a kind of cable fittings, it is also known as brass cable connector, cable joint, or cord grip, it is waterproof designed, and can meet IP68 protection class. A brass cable gland consists of lock nut, washer (or O ring), gland body, claw, seal, and sealing nut. Its body, lock nut, sealing nut are made from nickel plated brass, the seal is made from NBR or EPDM or silicon material, the claw is made from nylon PA66, and the washer/O ring is made from NBR or silicon material.
The brass cable glands can be made with 4 kinds of threads, M (metric) thread, PG thread, NPT thread, and G(PF) thread.
We can make customized specifications as per customers’ requirement, the material, thread type, thread length, and wire range can all be customized.
M32 brass cable glands are used for cable in diameter from 15mm to 22mm, and 18-25mm.
Technical Data for M32 brass cable gland
Thread
Cable Range
Thread O.D
Thread Length
Spanner Size
M32x1.5
15-22mm
32
10
35/35
M32x1.5
18-25mm
32
10
35/40
(If you need any non-standard sizes, please feel free to contact us, we provide customized service.)
