Description

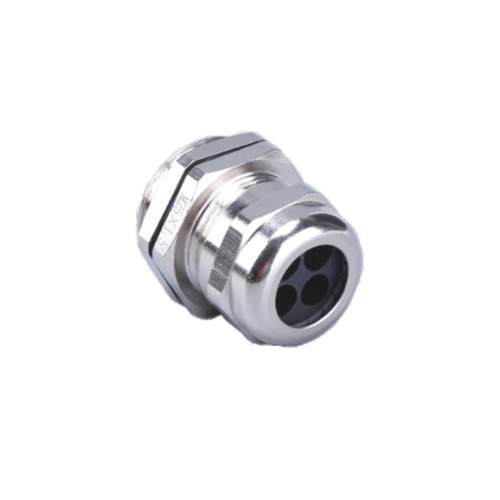

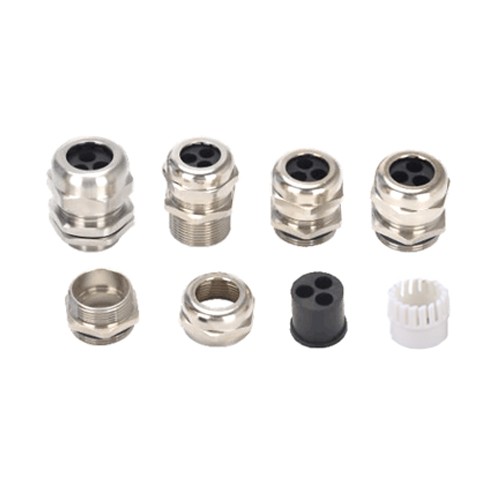

Metal multi hole cable gland-PG Thread

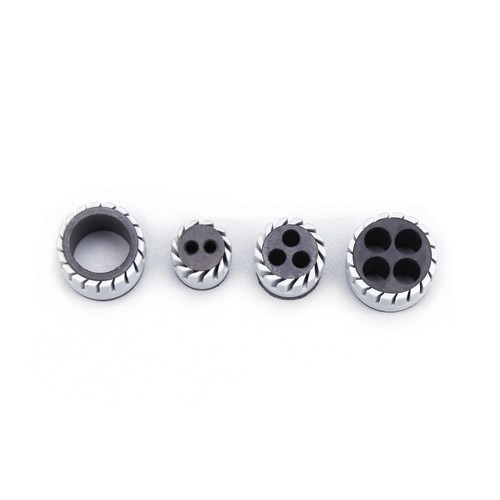

Multi-hole glands are strong and flexible, with the multiple inserts, it’s ideal to secure multiple wires through a single cable gland connection. Multi-hole glands offer strain relief for the cables to reduce damage and increase their durability. PG thread and Metric thread cable glands are available.
Material: Nickel-plated brass/Stainless steel
Seal: NBR/EPDM/Silicone
Claw: PA66(UL94-V2)
O-ring: NBR/ Silicone
Temperature range: -40℃~100℃
Protection class: IP68(up to 10bar)

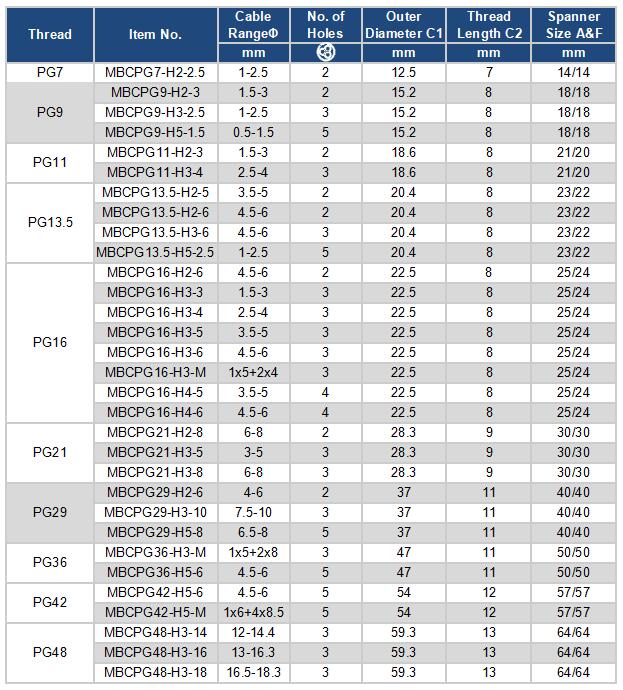

PG Thread multi hole cable gland Size Chart:
(If you need any non-standard sizes, please feel free to contact us, we provide customized service.)
