What is a M20 Cable Gland?
m20 cable gland is gland with the gland body in M20 thread, the out diameter of the thread is in diameter of 20mm, so it is also called 20mm cable gland.

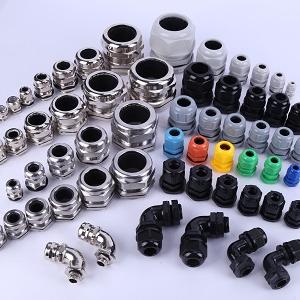

We have m20 cable gland in different materials, plastic (PA nylon, PP, PVC), brass, stainless 304, stainless 316, 316L, aluminum, etc.
Different m20 cable glands are used for different environments. We have M20 single compression cable glands for armoured and non-armoured cable, M20 double compression cable gland for armoured cable, ATEX explosion proof M20 cable gland, M20 EMC cable glands, M20 ventilation cable glands.
The standard M20 cable glands are as below:
Brass and Stainless M20 Cable Gland
|
Thread |
Cable Range |
Thread O.D |
Thread Length |
Spanner Size |
|
M20x1.5 |
6-12mm |
20 |
8 |
22/22 |
|
M20x1.5 |
10-14mm |
20 |
8 |
22/24 |
Plastic M20 Cable Gland
|
Thread |
Item No. |
Cable Range |
Outer Diameter |
Thread Length |
Spanner Size |
|
mm |
mm |
mm |
mm |
||
|
M20×1.5 |
NCB-M20-12 |
6-12 |
20 |
10 |
27/24 |
|
NCB-M20-12L |
6-12 |
20 |
15 |
27/24 |
|
|
NCB-M20-9 |
5-9 |
20 |
10 |
27/24 |
|
|
NCB-M20-9L |
5-9 |
20 |
15 |
27/24 |
|
|
NCB-M20-14 |
9-14 |
20 |
10 |
27/27 |
|
|
NCB-M20-14L |
9-14 |
20 |
15 |
27/27 |
|
|
NCB-M20-11 |
6-11 |
20 |
10 |
27/27 |
|
|
NCB-M20-11L |
6-11 |
20 |
15 |
27/27 |
We can also make customized sizes as per customers’ requirements. Please feel free to contact us if you have any inquiries.
