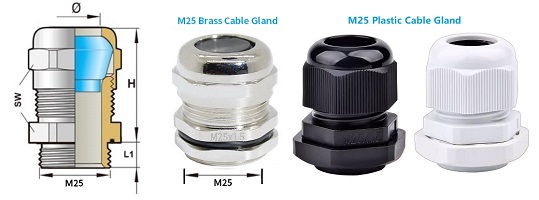

What is a M25 Cable Gland?
M25 cable gland, also known as 25mm cable gland, the gland body is in M25 thread, the out diameter of the thread is in diameter of 25mm.
We have M25 cable gland in different materials, plastic (PA nylon, PP, PVC), brass, stainless steel 304, stainless steel 316, 316L, aluminum, etc.
The standard M25 cable glands are as below:
Brass and Stainless Steel M25 Cable Gland
|
Thread |
Wire Range |
Thread Diameter |
Thread Length |
Wrench Size |
|
M25x1.5 |
9-16 |
25 |
9 |
27/27 |
|
13-18 |
25 |
9 |
27/30 |
Plastic M25 Cable Gland
|
Thread |
Model Name |
Wire Range |
Thread Diameter |
Thread Length |
Wrench Size |
|
M25x1.5 |
NCB-M25-14 |
9-14 |
25 |
11 |
33/27 |
|
NCB-M25-11 |
6-11 |
25 |
11 |
33/27 |
|
|
NCB-M25-18 |
13-18 |
25 |
11 |
33/33 |
|
|
NCB-M25-18L |
13-18 |
25 |
15 |
33/33 |
|
|
NCB-M25-13 |
7-13 |
25 |
11 |
33/33 |
|
|
NCB-M25-13L |
7-13 |
25 |
15 |
33/33 |
|
|
NCB-M25-7.9 |
5-7.9 |
25 |
11 |
33/33 |
|
|
NCB-M25-7.9L |
5-7.9 |
25 |
15 |
33/33 |
We also have the M25 EMC gland, M25 explosion proof cable gland, M25 armored and un-armored cable gland, and M25 vent cable gland. If you need any other M25 glands, please feel free to contact us for more details.
