What is Explosion-Proof Armored Cable Gland

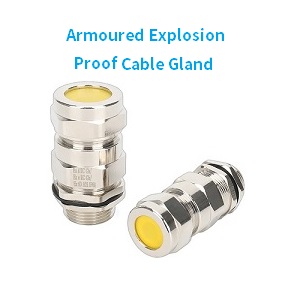

What is an explosion proof armored cable gland?

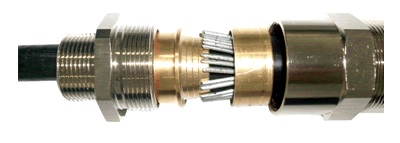

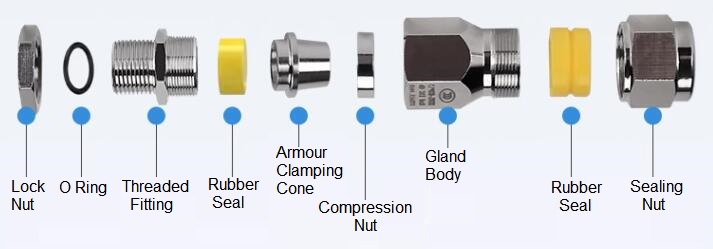

Armored cable glands are suitable for armored cable. Since the outer layer of the armored cable is wrapped by aluminum strip steel wire, and the armored explosion proof cable glands consist of a armor clamping cone and a compression nut, so they are suitable for fastening and sealing the steel wire armored cables.

Explosion-proof cable gland is also called explosion-proof compression cable gland. Explosion-proof glands are used to fix and lock the cables, and have the functions of explosion-proof, waterproof, dust-proof and flame-retardant.

An explosion proof amored cable glands are with the two above mentioned functions.

When using an armored cable gland, usually the external threaded end of gland body will be fixed on the explosion-proof box or explosion-proof equipment, the other end of the gland is connected to the armored cable.

Explosion-proof cable glands have excellent safety protection functions, they are suitable for hazardous areas such as chemical plants, metallurgical industry, thermal power plants, and oil refineries.
