Metric Thread Cable Gland Size Chart

The cable glands can be made with 4 kinds of threads, M (metric) thread, PG thread, NPT thread, and G(PF) thread.

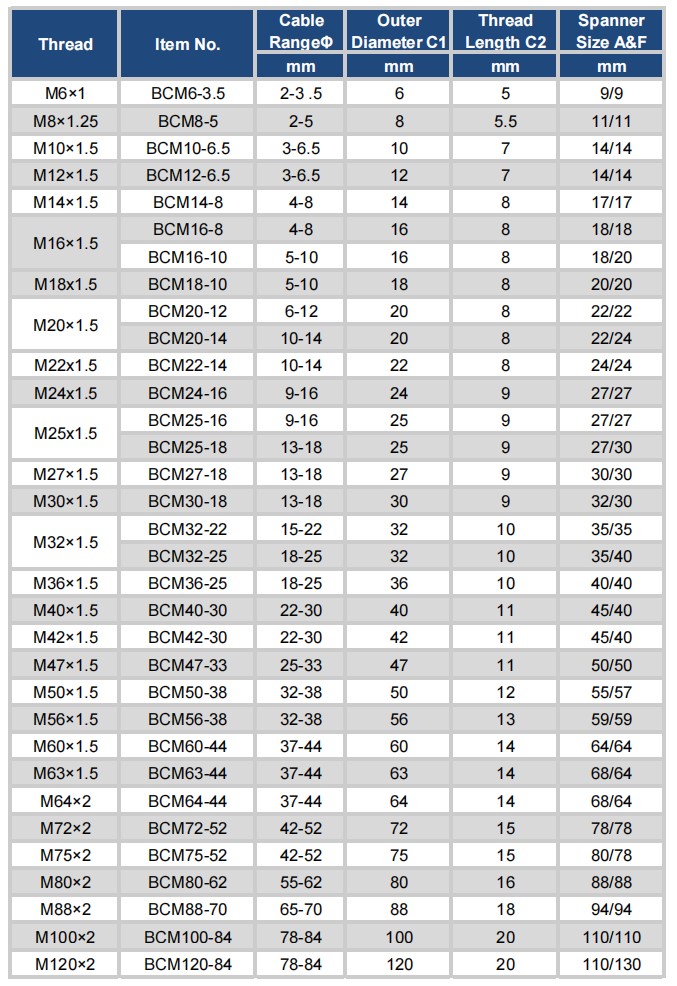

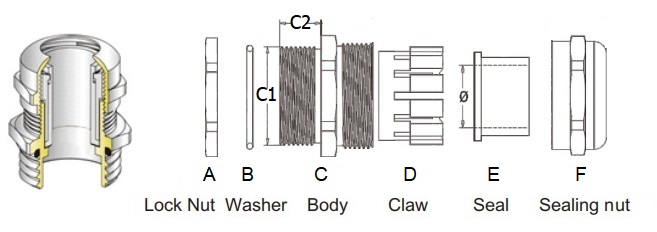

Today we introduce the standard sizes of our brass cable glands in metric thread, you can understand each sizes of the gland parts and can choose the suitable glands.

If you need a non-standard sizes cable glands, please feel free to contact us, we can make customized specifications as per customers’ requirement, the material, thread type,  thread length, and wire range can all be customized.
